3 - 30
3.3.24 Cassette Guide R
(1) Remove the paper cassette.
(2) Remove the upper cover (see 3.3.1).
(3) Remove the lower base unit (see 3.3.7).
(4) Remove the Main Control PCB (see 3.3.20).

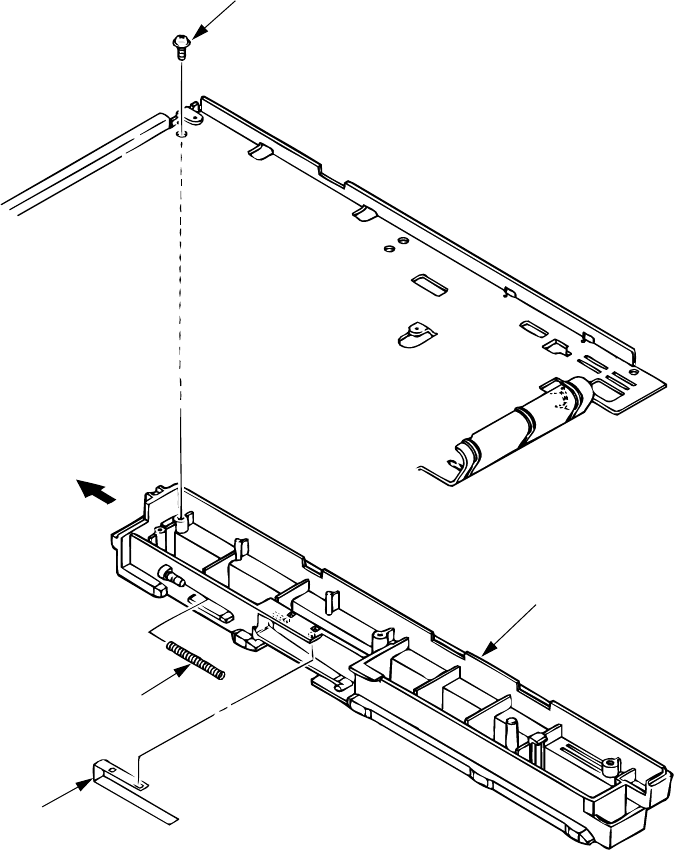

(5) Remove the screw 1, and remove the cassette guide R 2 by shifting it in the direction of
the arrow.
(6) Pull the eject spring 3 out of the cassette guide R 2, then remove the support spring 4.
1
2
3
4
